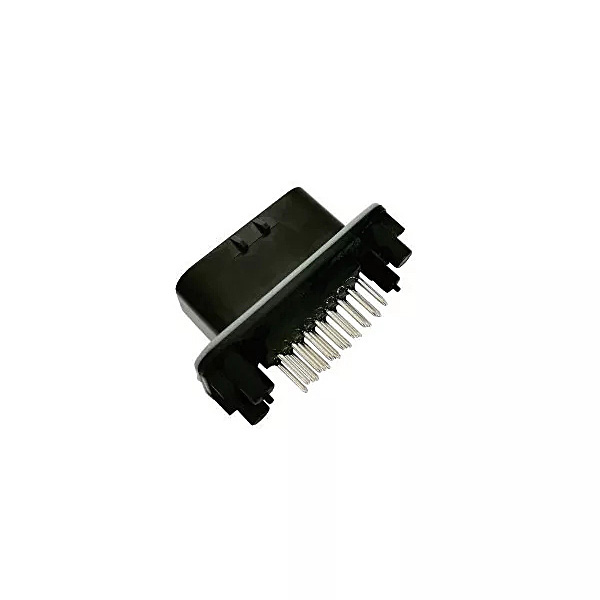

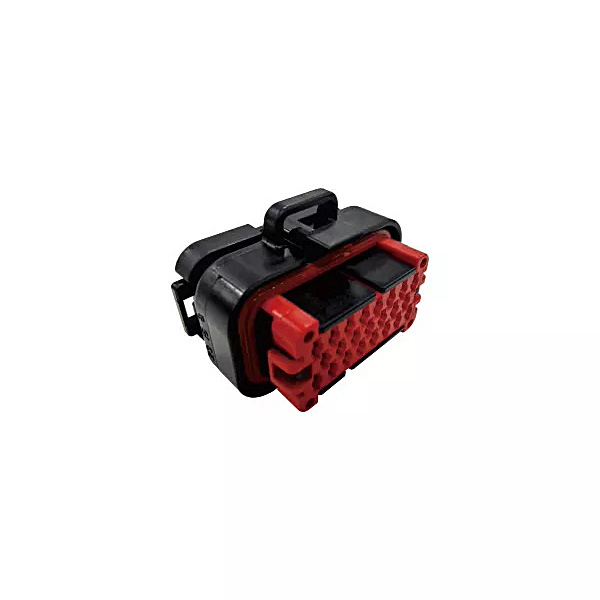

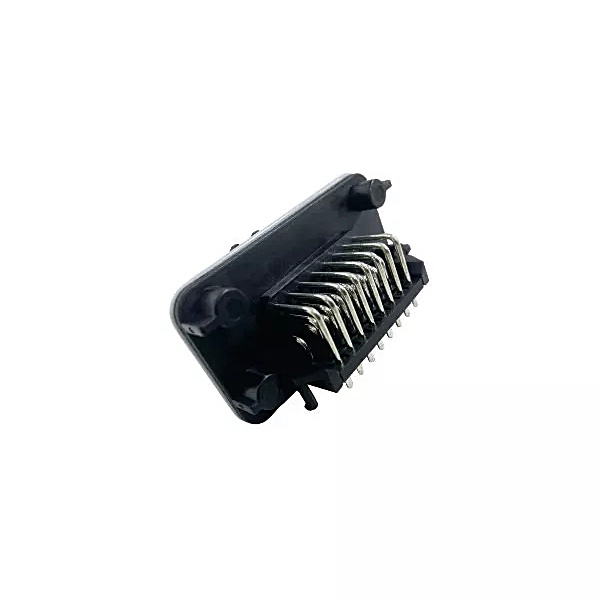

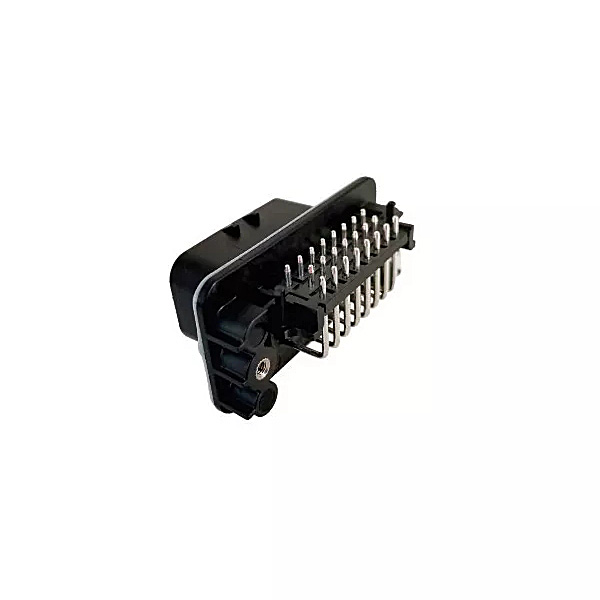

Lub teeb liab txuas - tsis muaj dej, peb kab, 23 cores
Yam khoom khoom noj
Rated voltage: 250V / DC
Rated Tam sim no: 3 ~ 8A
Plugin / tawm (Lub Sijhawm): 50
Qhov kub thiab txias: -40 ~ 125 ℃
Cable Ntau: 0.5 ~ 1.5mm2
Kev tiv thaiv qib: IP67 & IPX9
Cov nplaim hluav taws: UL94 V-0
Khoom siv: PBT / alloy hlau
Positions: 23 Pin
OD ntawm cable: Ф1.8 ~ 2.4mm
khoom Daim Ntawv Thov
Lub cev muaj zog tswj, Lub cev muaj zog, BMS, PDU, Cua txias system
| lub npe | Pin | P / N | lus hais |
| Teeb liab connector - waterproof, peb-kab plug | 23 | GE01-P008-23NNB-Y01 | |
| Teeb liab connector - waterproof, peb kab ncaj tus pin qhov (socket). | 23 | GVT03-RS013-23-L02 | Unilateral waterproof nrog txiv ntseej |
| 23 | GVT03-RS013-23-L03 | Nrog txiv ntseej unilateral non-waterproof | |
| 23 | GVT03-RS013-23-L04 | Unilateralwaterproof tsis muaj txiv ntseej | |
| 23 | GVT03-RS013-23 | Non-nut unilateral non-waterproof | |
| Teeb liab connector - waterproof, peb-kab khoov tus pin socket | 23 | GVT03-RA013-23-L02 | Unilateral waterproof nrog txiv ntseej |
| 23 | GVT03-RA013-23-L03 | Nrog txiv ntseej unilateral non-waterproof | |
| 23 | GVT03-RA013-23-L04 | Unilateral waterproof tsis muaj txiv ntseej | |
| 23 | GVT03-RA013-23 | Non-nut unilateral non-waterproof | |
| Teeb liab connector - waterproof, peb-kab rov qab khoov tus pin socket | 23 | GVT03-RA013-23-L01 | Nrog txiv ntseej unilateral non-waterproof |
