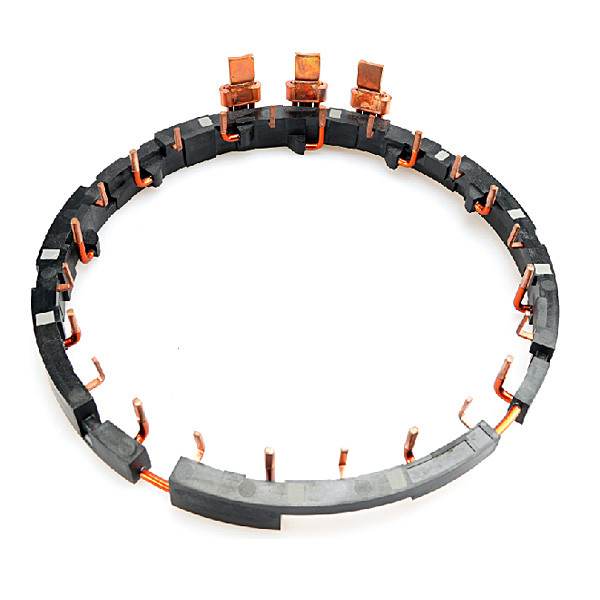

Product Parameter
*Material: φ3.0 enameled wire, nickel sheet HL204, T2M copper foil, T2Y2 copper busbar, plastic PPS-GF30
*Core technology: enameled wire stripping/bending, stamping, injection molding, soft copper foil molecular diffusion welding, resistance welding
*Technical parameters:
*Hot and cold shock conditions: -40℃-150℃, 0.5h per cycle, 500 cycles;
*High temperature aging: double 85 1000 hours
*High temperature temperature rise: 85℃ 2 hours temperature rise is less than 40K
*Insulation withstand voltage: 3000VAC/1min without breakdown, leakage current ≤5mA

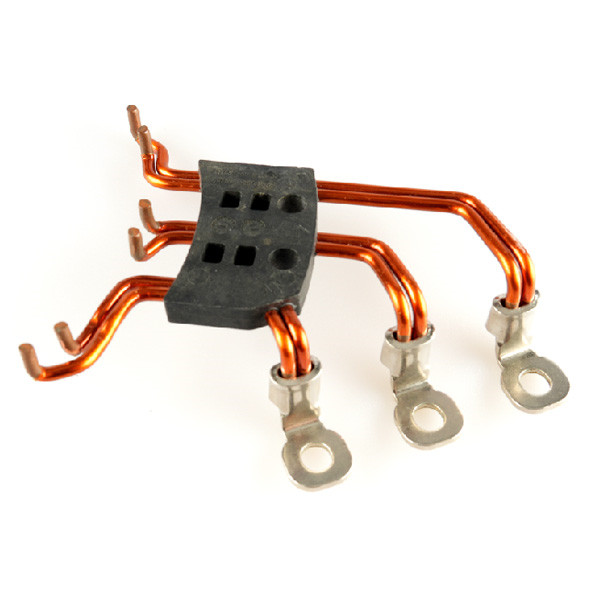

Product Parameter
*Material: φ3.0 enameled wire, T2Y2 copper busbar, plastic PPS-GF30
*Core technology: enameled wire stripping/bending, copper stranding/cutting/squaring, stamping, injection molding, resistance welding
*Technical parameters:
*High temperature aging: 180°C-200°C, 240 hours short-term aging and 3000 hours long-term aging
*Insulation withstand voltage: 5000VAC/5min without breakdown, leakage current ≤5mA
*Salt spray: 48H

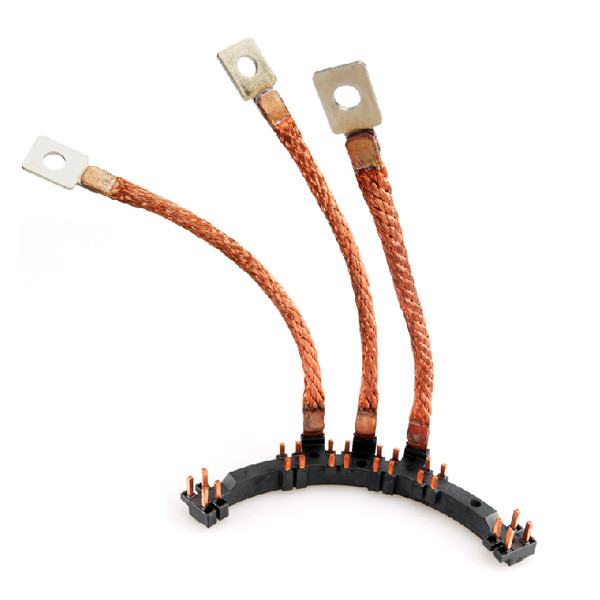

Product Parameter
*Materials: φ10.4 copper stranded wire, T2Y2 terminal block (thickness 2.5mm), TU2 copper busbar (thickness 2.0mm),
*Plastic PPS-GF30, fluororubber heat shrink tubing
*Core technology: copper stranded wire/cutting/squaring, stamping, injection molding, resistance welding
*Technical parameters:
*High temperature aging: 180°C-200°C, 240 hours short-term aging and 3000 hours long-term aging
*Insulation withstand voltage: 5000VAC/5min without breakdown, leakage current ≤5mA
