Product Parameters
Rated Voltage:250V/DC
Rated Current:8A
Plugin/out(Times):50
Temperature Range:-40’~125°C
Protection Level:IP67&IPX9K
Flame Class: UL94 V-0
Material: PBT+Metal Alloy
Positions: 31 Pin
Cable Range:0.5mm2~1.5mm2
Product Application
Motor controller, Motor, BMS, PDU, Air conditioning system etc
| Name | P/N | Remarks |

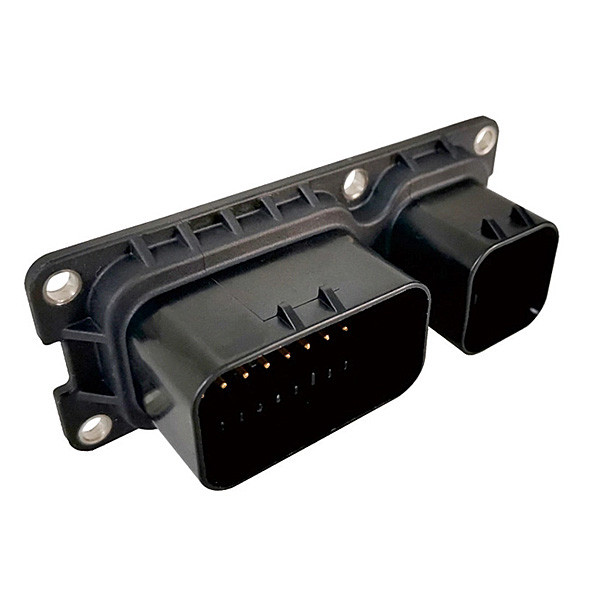

| Combined connector-31 core (8+23) socket | GVT03-RS013-31-D01 | 2 in 1 connector-31pin socket |
