Product Parameters
Rated Voltage:800V/DC
Rated current:20~45A
Plugin/out(Times):>50
Temperature Range:-40~125°C
Cable Range:2.5mm2，4mm2，6mm2
HVIL:Yes
Protection Leve:IP67&IP6K9K
Flame Class: UL94 V-0
Material:PA66+Metal Alloy
Positions: 2 Pin
lectrical Protection:IP2XB
EMC:360°EMC shield
Product Application
PDU, Vehicle charger, Motor controller, Motor, Multi-in-one electric control system,etc
| Name | P/N | Remarks |

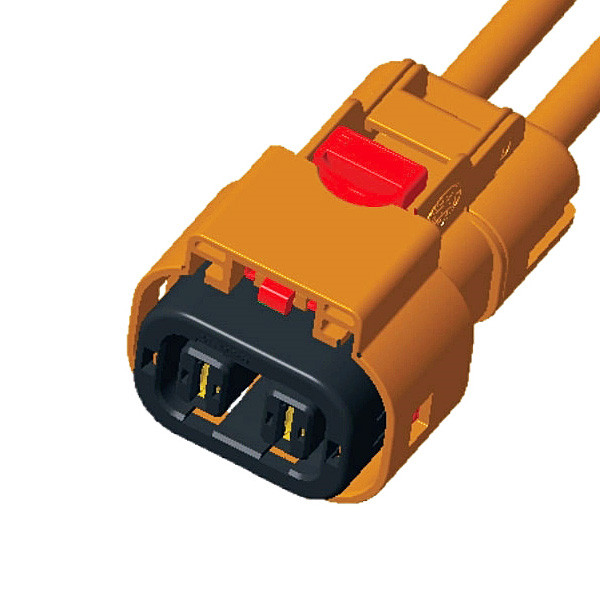

| GH630 Series 2P Connector Plug | GH63-P0XX-2XY0-Y01 | Rated Current 45A@85°C,6mm2 32A@85°C,4mm2 20A@85°C,2.5mm2 |
