Product Parameters
Rated Voltage:1000VDC
Rated Current:200A
Temperature Range:-40~125°C
Flame Class:UL94 V-0
Material:PA66/Copper Alloy
Withstand voltage:3500V DC,60S
Leakage Current:≤2mA
Insulation resistance:1000V DC,60S,≥500MQ
Product Application
Used forEyautomotive PDUs
| Name | P/N | Remarks |

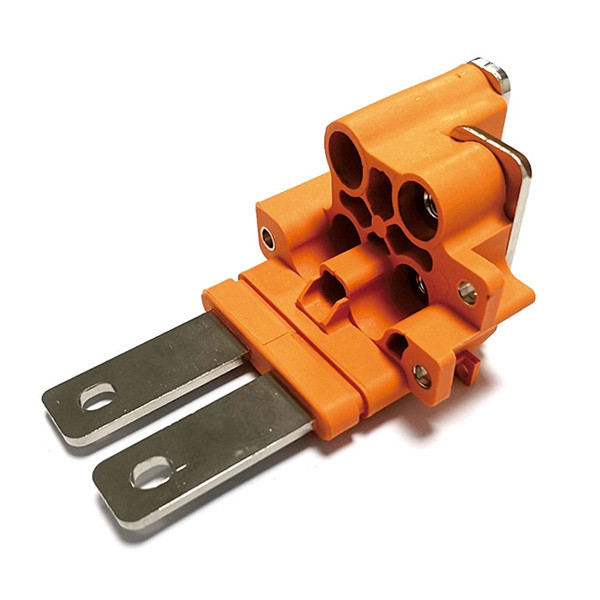

| Copper busbar fixing seat | GT05-F200-2NNB-Y01 |
