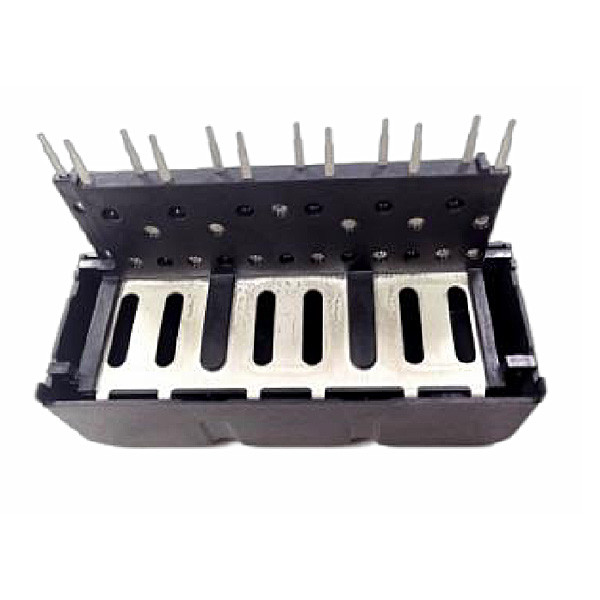

Product Parameter
*Material: T2Y2 copper busbar, plastic PBT+GF30
*Core technology: stamping, copper busbar riveting, laser welding, injection molding
*Technical parameters:
*Hot and cold shock conditions: -40℃-80℃, 3 hours per cycle, 100 cycles;
*High temperature aging: 85℃1920 hours
*Insulation withstand voltage: 3000VAC, maintain 60s, leakage current <0.1mA
*Low temperature working test: -40°C, storage 48 hours
*Constant damp heat test: double 85, 96 hours
*Temperature change: 4.5 hours per cycle, 450 times
*Damp heat cycle: normal temperature 23±5 humidity 50%±25%, 240 hours

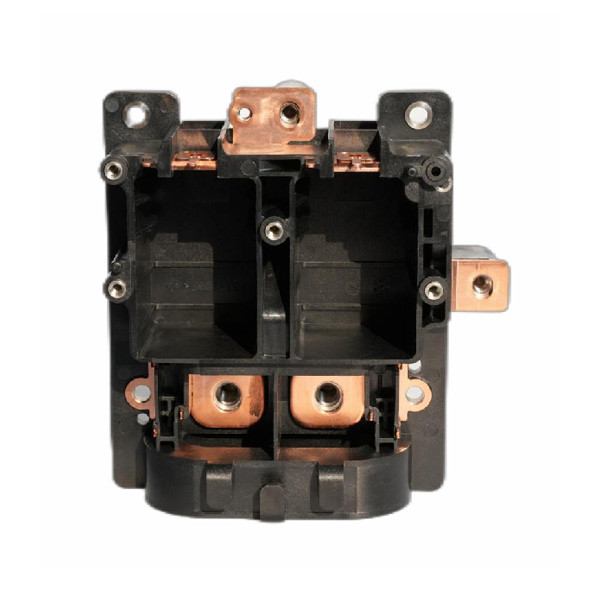

Product Parameter
*Material: T2Y2 copper busbar, plastic PPS+GF40
*Core technology: stamping, electroplating, riveting, injection molding
T*echnical parameters:
*Voltage resistance: Voltage resistance to ground: AC 2100Vrms 50Hz 1min;
*Voltage resistance between each insert and copper busbar: AC 2100Vrms 50Hz 1min non-breakdown leakage current <5mA;
*Insulation resistance: >1000MΩ (1000VDC MΩ meter)
*Hot and cold shock test: (-40°C~ +125°C) 300H cycle,
*High temperature and high humidity: (85% RH, +85°C) placed for 7 days,
*Vibration test: X, Y, Z axis 10G vibration for 22 hours,
*Aging test: 150℃ 1008H

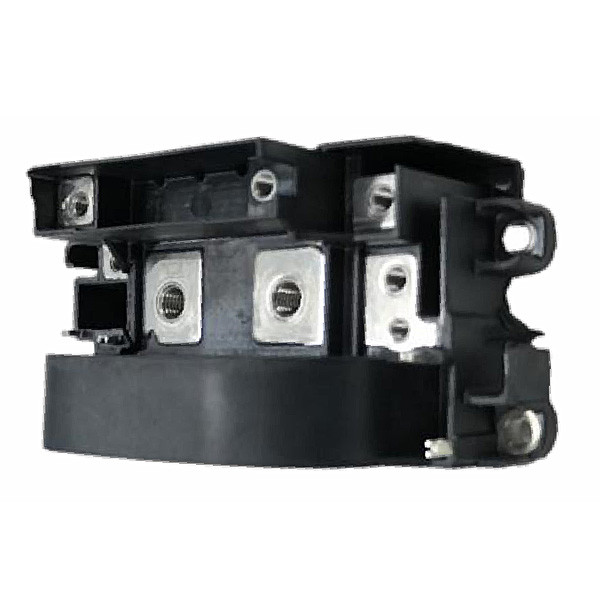

Product Parameter
*Material: T2Y2 copper busbar, plastic PBT+GF30
*Core technology: stamping, electroplating, injection molding
*Technical parameters:
Hot and cold shock conditions: -40℃-80℃, 3 hours per cycle, 100 cycles;
High temperature aging: 85℃1920 hours
*Low temperature working test: -40°C, storage 48 hours
*Constant humidity test: double 85, 96 hours
*Temperature change: 4.5 hours per cycle, 450 times
*Humidity cycle: normal temperature 23±5 humidity 50%±25%, 240 hours
