Product Parameter
*Rated Voltage： 600V/DC
*Rated Current： 200A
*Temperature Range： -40℃ 〜125℃
*Cable Range： 50mm ²
*Protection Level: IP67 & IP6K9K
*Flame Class: UL94 V-0
*Material: PA66+Copper Alloy
*Electrical Protection： IP2XB(Supporting cover)

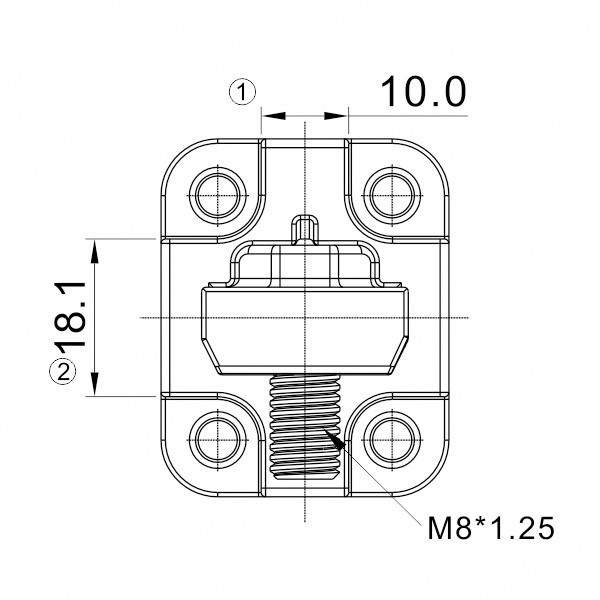

*Bolt: M8/ M3
*Terminal retention： 50kg Min
*Bolt grade： 8.8
*Installation Torque： 20±2N.m
Product Application
PDU, Vehicle charger, Motor controller, Motor, multi-in-one electric control system etc.
