Product Parameters
Rated Voltage: 1000V AC/1000V DC
Rated Current:20A/40A
Temperature Range:-40°C~125°C
Withstand voltage: 3500V AC
IP Rating:IP 68
Flame Class: Meets UL94 V-0
Insulation resistance:5000MΩ Min,DC1000V
Product Application
PDU, Vehicle charger, Motor controller, Motor, Multi-in-one electric control system, etc.
| Name | P/N | Remarks |

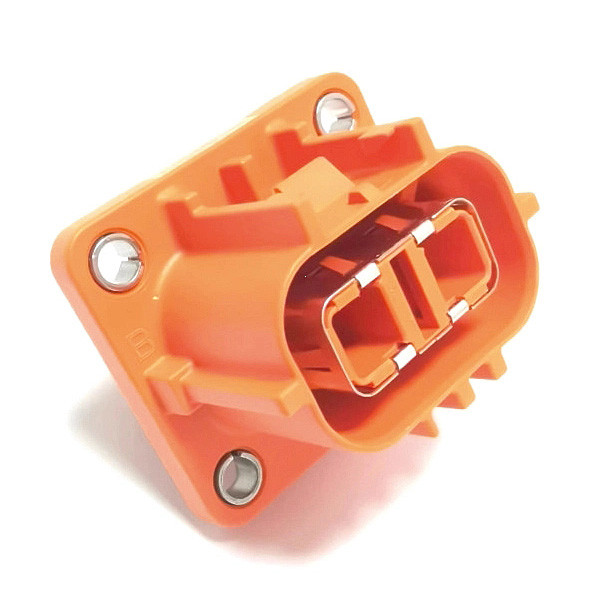

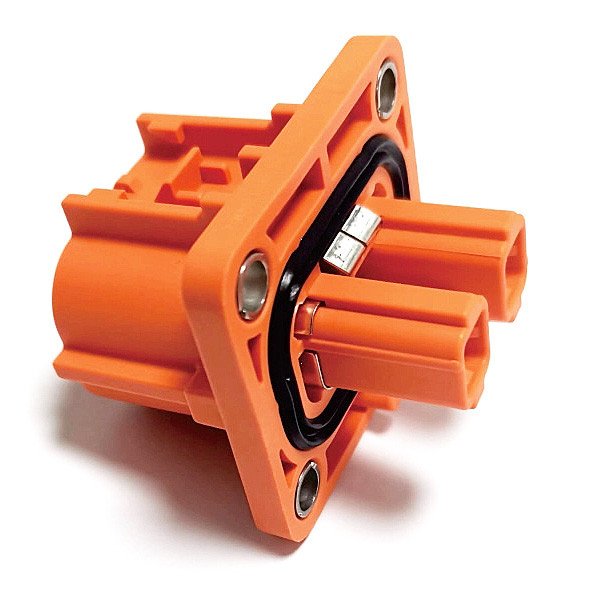

| High voltage connector (2-core)-socket | GH14-F020-2A(B/D/E/F)Y0-Y01 | |
| High voltage connector (2-core)-plug | GH14-P020-2A(B/D/E/F)Y0-Y01 |
