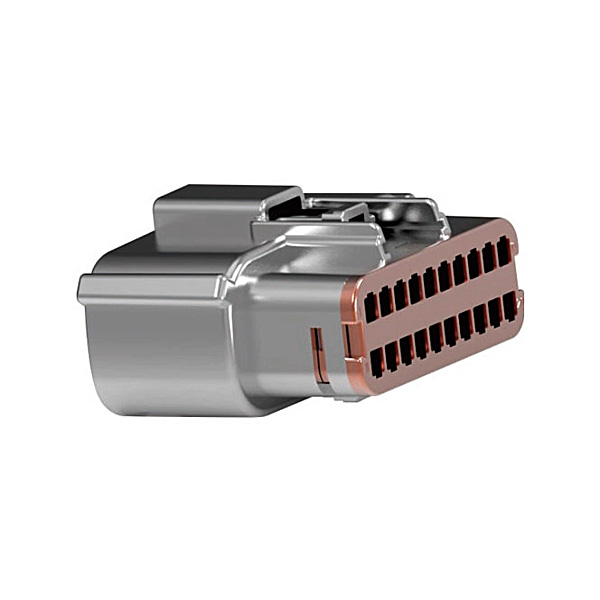

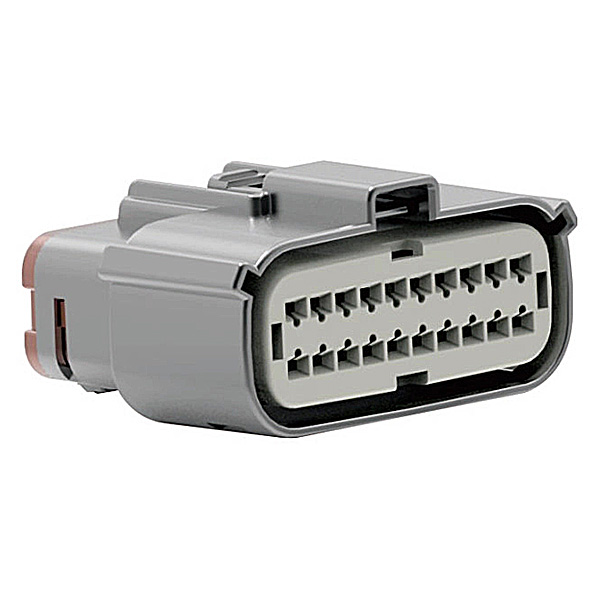

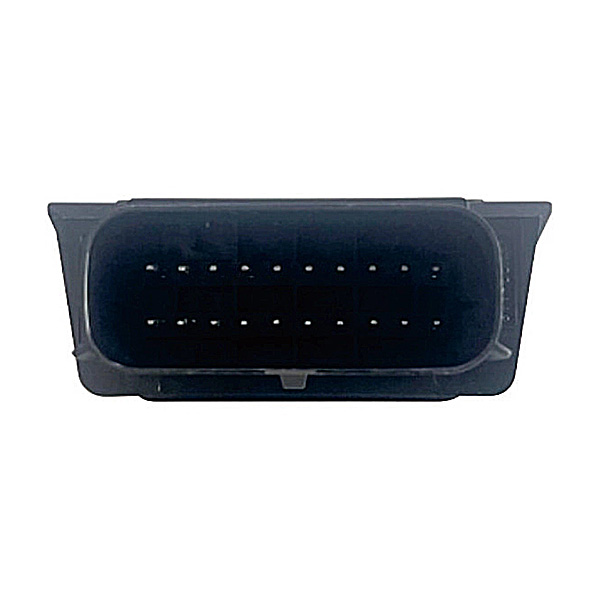

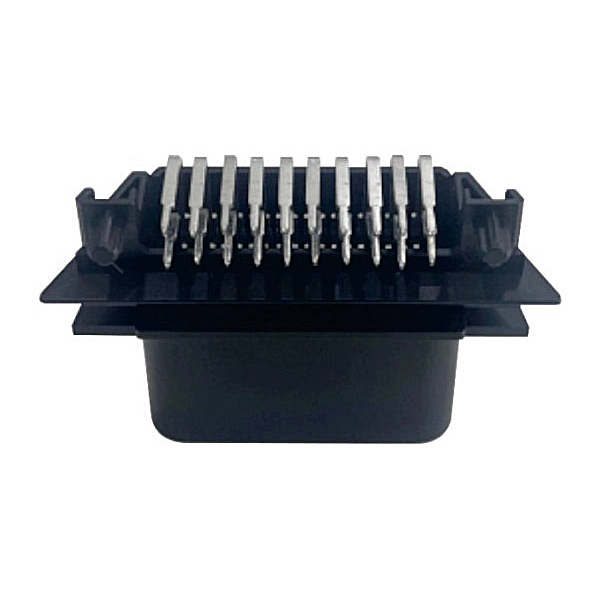

Low voltage connector-20PIN socket + plug
Low voltage connector-20PIN socket + plug
Low voltage connector-20PIN socket + plug
Low voltage connector-20PIN socket + plug
  1. Low voltage connector-20PIN socket + plug
  2. Low voltage connector-20PIN socket + plug
  3. Low voltage connector-20PIN socket + plug
  4. Low voltage connector-20PIN socket + plug

Low voltage connector-20PIN socket + plug

Categories: ,

Product Parameters
Rated Voltage:250V/AC
Rated Current:5~12A
Plugin/out(Times):≥20
Temperature Range:-40~125°C
Protection Level: IP67
Flame Class:UL94 V-0
Material: PBT+Rubber
Positions: 20 Pin
Cable Range:0.75mm2，2.00mm2
HVIL: Yes

Product Application
PDU,Vehicle charger,Motor controller,Motor,multi-in-one electric control system,etc

Name P/N Remarks
Low voltage connector-32PIN socket GE02-S012-32AYB-B01 Rated Current:
0.64mm socket，(0.75mm2 wiring harness)6A
1.50mm socket，(2.00mm2 wiring harness)12A
Low voltage connector-32-pin plug GE02-P012-32AYB-Y01
