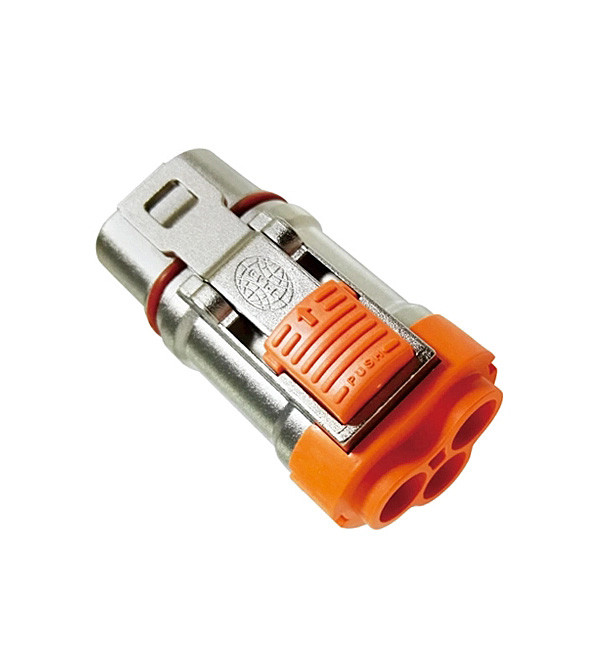

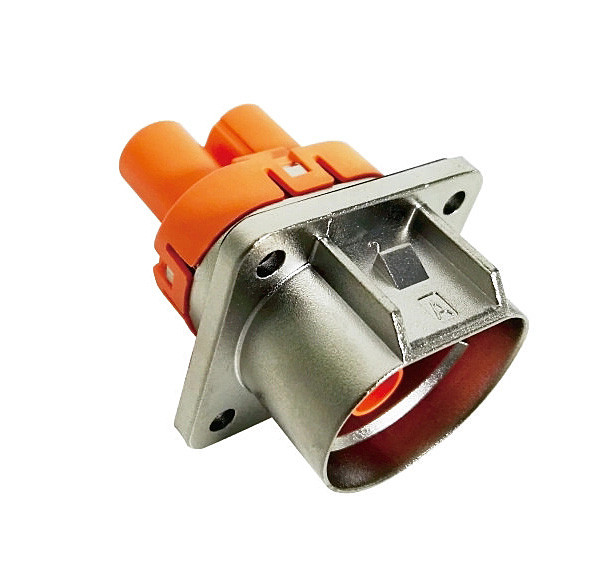

Product Parameters
Rated Voltage:800V/DC
Rated Current:20~60A
Plugin/out(Times):100
Temperature Range:-40~125°C
Cable Range:2.5~10mm2
Protection Leve:lP67 &IP6X9
Flame Class: UL94 V-0
Materia:PA66+Metal Alloy
Positions:3 Pin
Electrical Protection:IP2XB
HVIL:Yes
Product Application
PDU,Battery pack,Motor controller,DC/DC
| Key Mapping | Plug | Receptacle | Cable | Remarks |
| A | GM02-P020-2AYN-Y01 | GM02-F020-2AYN-Y01 | 2.5mm2 | *2.5,4,6mm2 Shielded wire *10mm2 Unshielded cable *2.5mm2 Cable:OD:Φ5.7~6.1mm *4mm2 Cable:OD:Φ6.6~7mm *6mm2 Cable:OD:Φ7.7~Ф8.3mm *10mm2 Cable:OD:Φ6.3~6.7mm *Socket for unshielded cable |
| GM02-P025-2AYN-Y02 | GM02-F025-2AYN-Y02 | 4.0mm2 | ||
| GM02-P035-2AYN-Y03 | GM02-F035-2AYN-Y03 | 6.0mm2 | ||
| GM02-P060-2AYN-Y04 | GM02-F060-2AYN-Y04 | 10mm2 | ||
| B | GM02-P020-2BYN-Y01 | GM02-F020-2BYN-Y01 | 2.5mm2 | |
| GM02-P025-2BYN-Y02 | GM02-F025-2BYN-Y02 | 4.0mm2 | ||
| GM02-P035-2BYN-Y03 | GM02-F035-2BYN-Y03 | 6.0mm2 | ||
| GM02-P060-2BYN-Y04 | GM02-F060-2BYN-Y04 | 10mm2 |
