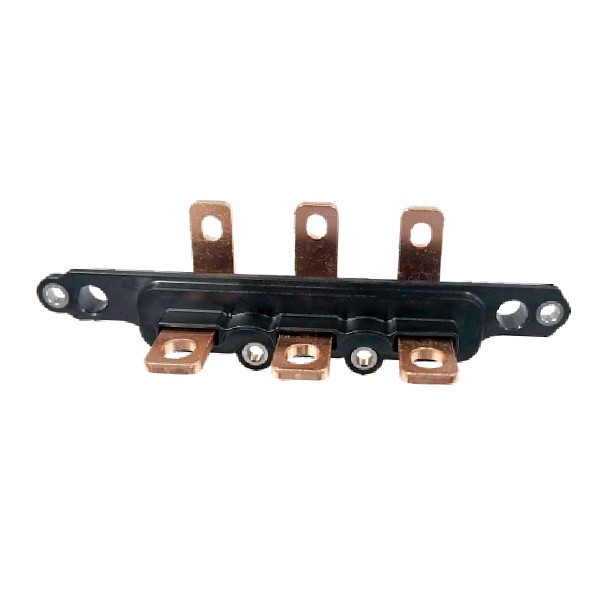

Product Parameter
*Material: PPS-GF30, T2Y2 copper bar, SUS304 steel sleeve
*Core technology: stamping, injection molding, dispensing, sealing test
*Technical parameters:
*High and low temperature impact: Tmin:-40℃, Tmax:150℃,
*Number of cycles: 200 times, switching time ≤30S,
*Temperature point holding time: 30min
*Aging test: Double 85 conditions, test 1000H
*Sealing requirements: Designated cavity, motor side into the air pressure 50kPa, ventilation time 30s, pressure holding time 10s, test time 10s,
*Leakage value shall not be higher than ≤1cc/min

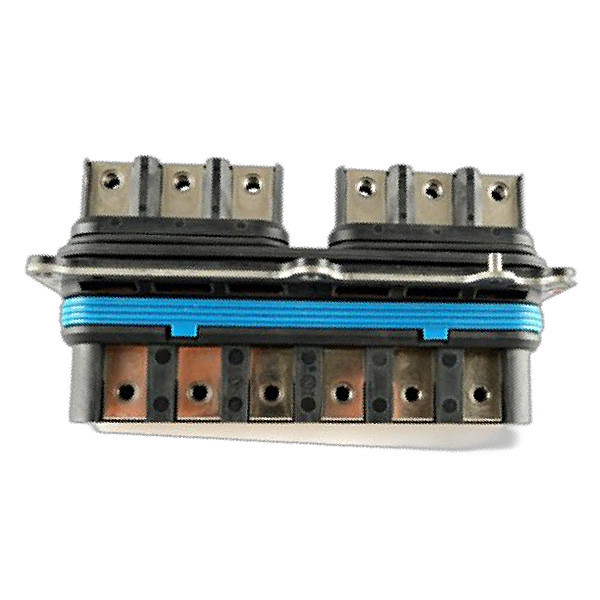

Product Parameter
*Material: stainless steel sheet T2Y2 copper busbar, plastic PPA+GF33, AB sealant, sealing ring
*Core technology: stamping, riveting, injection molding, dispensing, airtightness test
*Technical parameters:
*Insulation resistance/insulation withstand voltage test: 2500V/AC, time 10s, leakage current ≤3mA; 1000V/DC, time 10s,
*Insulation resistance ≥500MΩ;
*Sealing requirements: 50kPa air pressure on the motor side, ventilation time 30s, pressure holding time 10s, test time 20s,
*Leakage value shall not exceed 18Pa

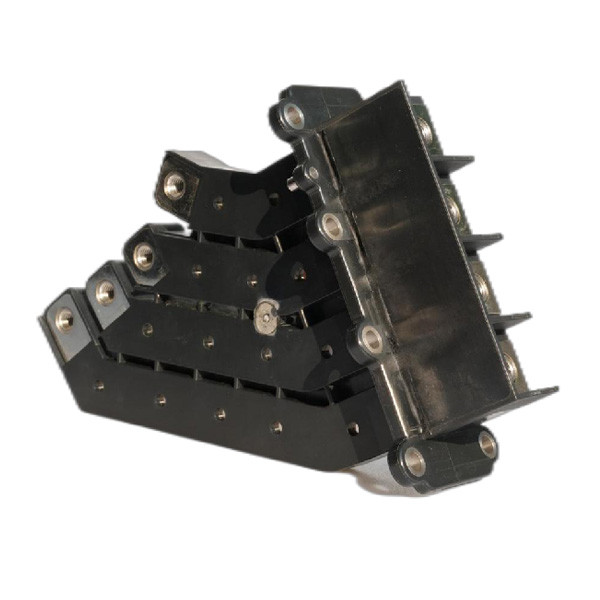

Product Parameter
*Materials: φ10.4 copper stranded wire, T2Y2 terminal block (thickness 2.5mm), TU2 copper busbar (thickness 2.0mm),
*Plastic PPS-GF30, fluororubber heat shrink tubing
*Core technology: copper stranded wire/cutting/squaring, stamping, injection molding, resistance welding
*Technical parameters:
*High temperature aging: 180°C-200°C, 240 hours short-term aging and 3000 hours long-term aging
*Insulation withstand voltage: 5000VAC/5min without breakdown, leakage current ≤5mA
