Shenzhen GVTong Electronic Technology Co., Ltd. specializes in the production and sales of rectangular connectors – 32 cores.Rectangular connector – 32 cores with low price and high quality. New and old customers are welcome to consult.
Product Parameters
Rated Voltage:550VDC/AC
Protection Leve:IP67 &IPX9K
Flame Class: UL94 V-0
Rated Current:
SignalTerminal 5A
PowerTerminal 13A
Plugin/out(Times)):300
Temperature Range:-40~125°C
Cable Range:0.5~1.5mm2
SignalTerminal:0.35~0.5mm2
Power Terminal:2.5~2.5mm2
Materia:PA66+Metal Alloy
Positions: 32 Pin
OD of cable:
SignalTerminal:Ф1.4~2.5mm
PowerTerminal:Ф1.6~3.0mm
Product Application
Motor controller,Motor, BMS,PDU, Battery pack etc.
| Name | P/N | Remarks |

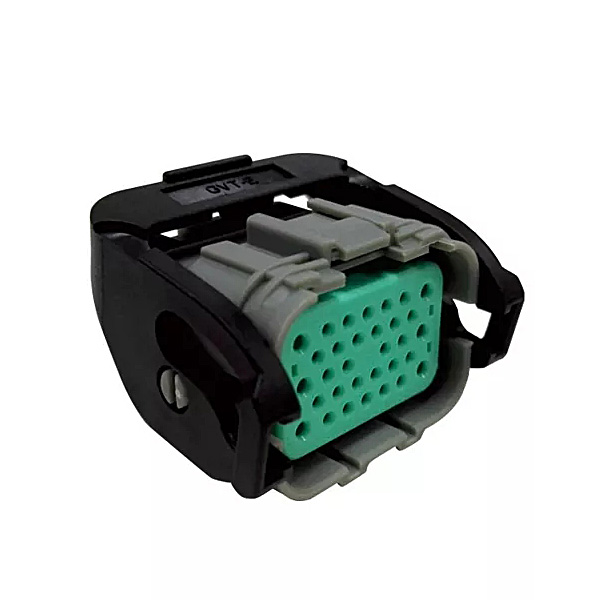

| Rectangular connector-32-pin plug | GE01-P005-32BNG-Y01 | / |

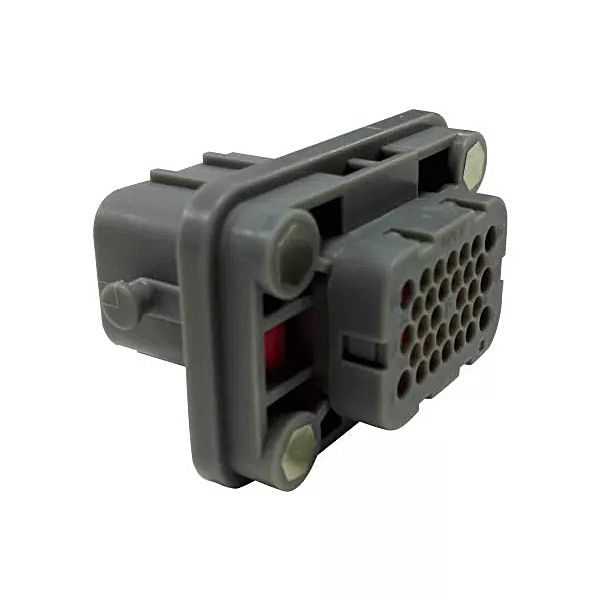

| Rectangular connector-32-pin socket | GE01-F005-32BNG-Y01 | / |
