Product Parameters
Rated Voltage:500V/DC
Rated current:45A
Plugin/out(Times):500
Temperature Range:-40~125°C
Cable Range:3.0mm2~6.0mm2
Protection Level:IP67 &IPX9
Flame Class: UL94 V-0
Materia: PA66+Metal Alloy
Positions: 4 Pin
OD of cable:Φ2.80~5.80mm
Product Application
PDU,PEU,Charging Machine,DC/DC, Power Battery pack etc
| Name | P/N | Remarks |

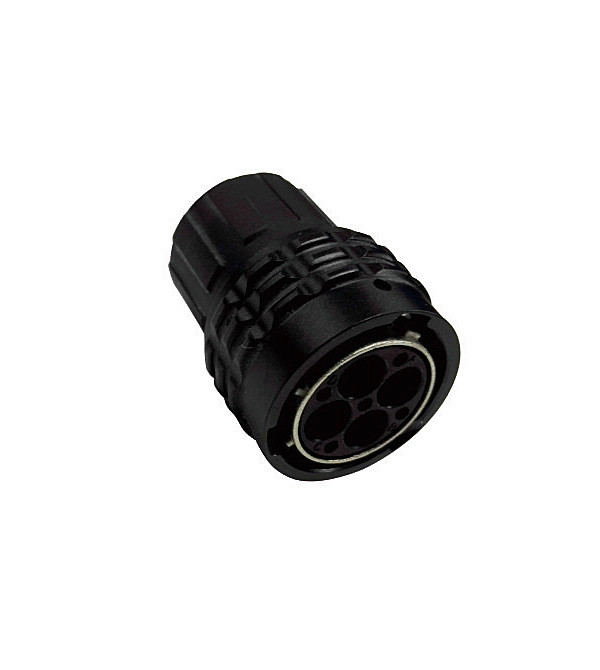

| 16# 4-core signal connector plug | GR61604PNHEC | Unilateral waterproof |

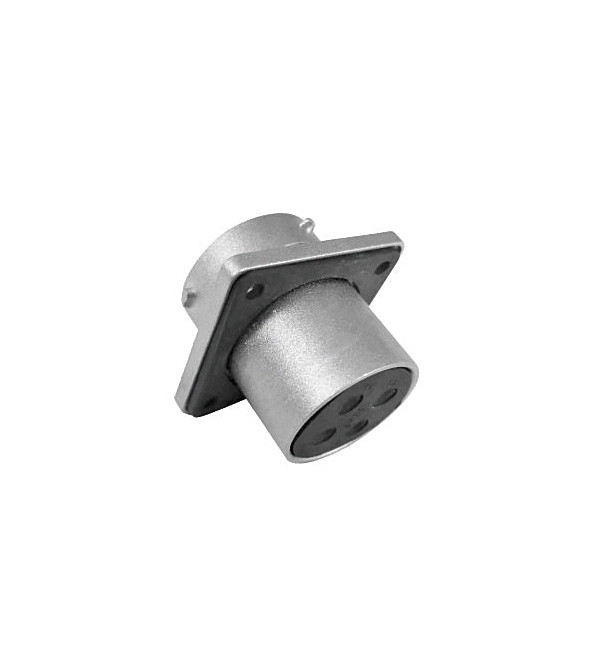

| 16# 4-core signal connector square plate socket | GR01604SN | |

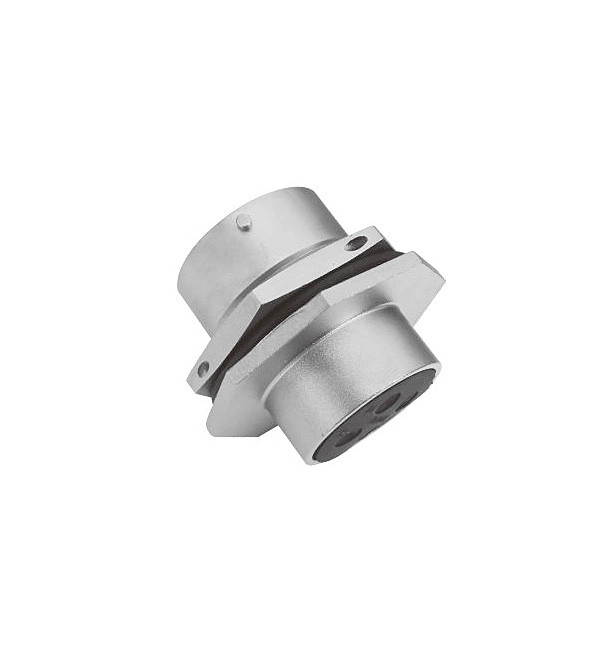

| 16# 4-core signal connector octagonal plate socket | GR71604SN |
