Product Parameters
Rated Voltage:300V/DC
Rated Current:13A
Plugin/out(Times):500
Temperature Range:-40~125°C
Cable Range:0.5~2.5mm2
Protection Leve: |P67 &IPX9
Flame Class: UL94 V-0
Material: PA66+Metal Alloy
Positions: 8 Pin
OD of cable:Ф1.60~2.70mm
Product Application
PDU,PEU,Charging Machine,DC/DC, Power Battery pack etc
| Name | P/N | Remarks |

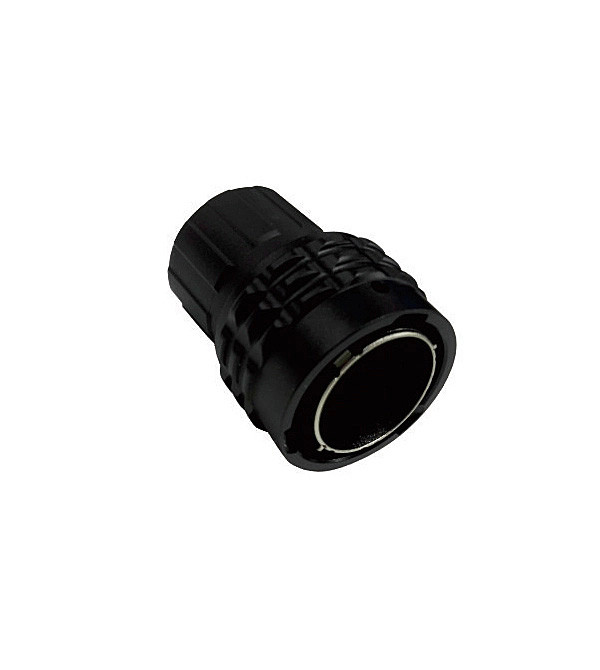

| 12#8-core signal connector plug | GR61208PNHEC | Unilateral waterproof |

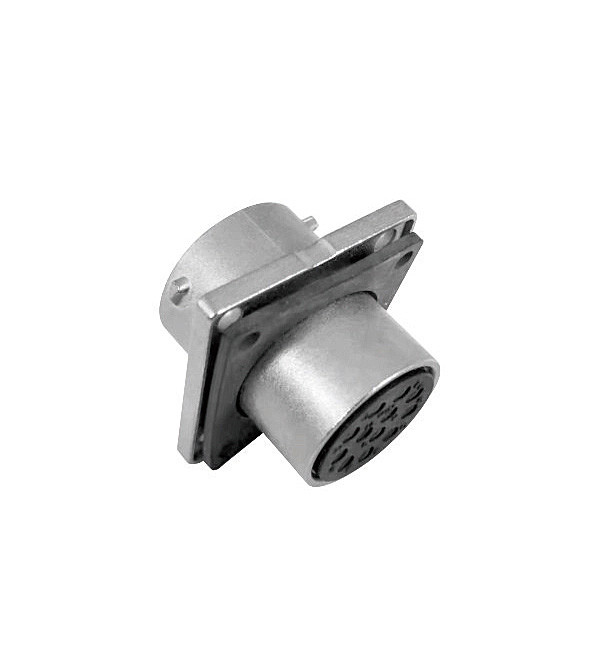

| 12#8-core signal connector square socket | GR01208SN | |

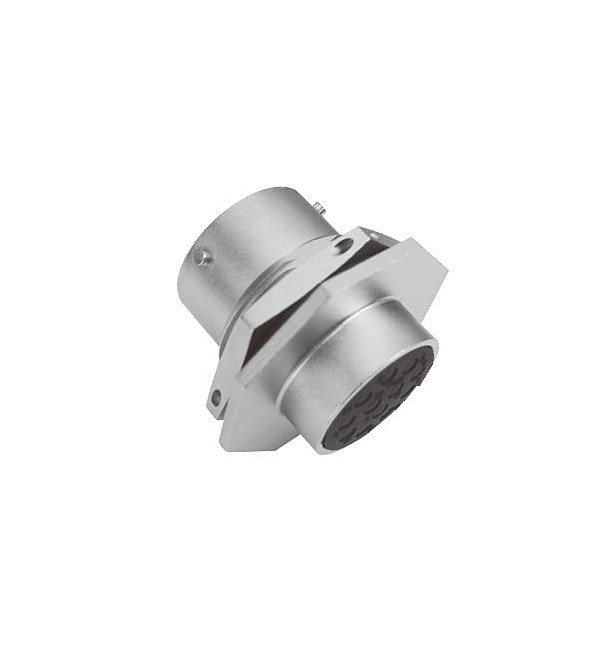

| 12#8-core signal connector octagonal socket | GR71208SN |
