Product ParametersProduct Parameters
| Rated Voltage: 500V/DC |
Protection Level: IP67&IPX9K |
| Rated Current: 3~7A |
Flame retardant grade: UL94 V-0 |
| Plug in/out(Times): 50 |
MaterialMaterial: PBT+Metal AlloyMetal Alloy |
| Working temperatureTemperature Range: -40℃~-125℃ |
Number of coresPositions:
Double row 18Pin signal connector: 18Pin
Double row 26Pin signal connector: 26Pin |
| Applicable cable Cable Range: 0.3mm²~1.25mm² |
Cable OD OD Of cable: Φ1.4~Φ2.3mm |
Product ApplicationProduct Application
MBMS, BMS, navigation application system, vehicle-mounted unit, etc.
| NameName |
Number of Pins |
Material number P/N |
RemarksRemarks |

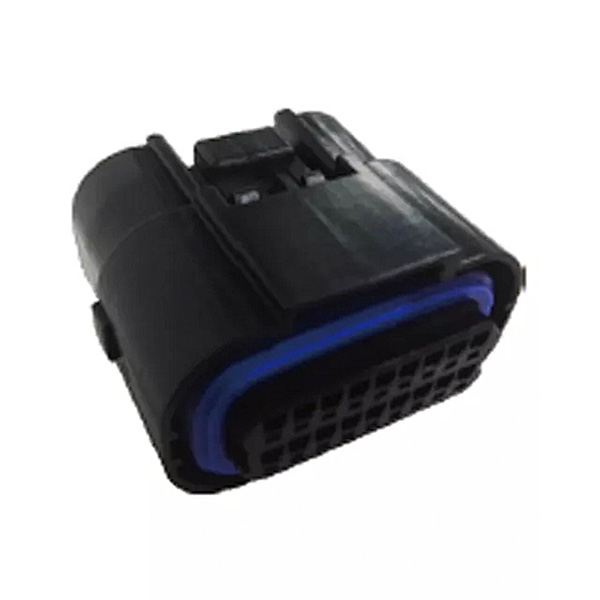

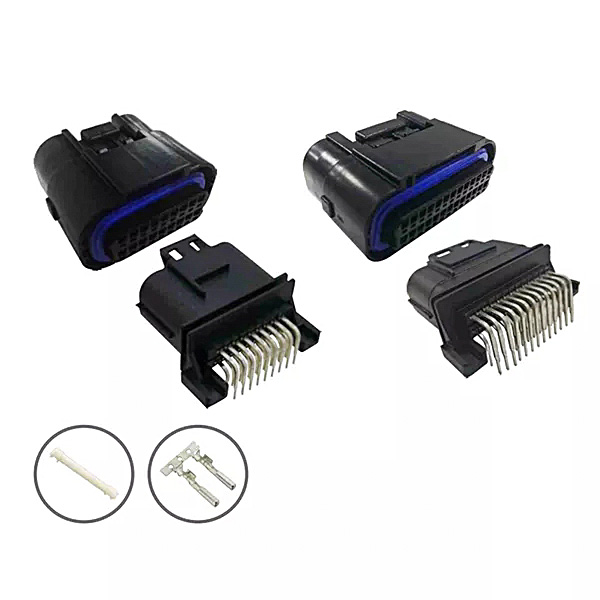

| Signal connector-waterproof, double row plug |
18 |
GE01-P003-18NNB-Y01 |
One side waterproof |
| Signal connector-waterproof, double row socket |
18 |
GE01-F003-18NNB-Y01 |
One side waterproof |
| Signal connector-waterproof, double row plug |
26 |
GE01-P003-26NNB-Y01 |
One side waterproof |
| Signal connector-waterproof, double row socket |
26 |
GE01-F003-26NNB-Y01 |
One side waterproof |
| Signal connector-waterproof, double row terminal |
/ |
S06-0016S-NA-N |
One side waterproof |
| Signal connector-waterproof, double row blind plug |
/ |
H13-0001-NA-N |
One side waterproof |
