Product Parameters
Rated Voltage:250V/DC
Rated Current:3~8A
Plugin/out(Times):50
Temperature Range:-40~125℃
Cable Range:0.5~1.5mm2
Protection Level:IP67&IPX9
Flame Class:UL94 V-0
Material:PBT/Metal alloy
Positions:8 Pin
OD of cable:Φ1.8~2.4mm
ProductApplication
Motor controller,Motor,BMS, PDU,Air conditioning system
| Name | Pin | P/N | Remarks |
| Signal connector – waterproof, three-row plug | 8 | GE01-P008-8NNB-Y01 | |

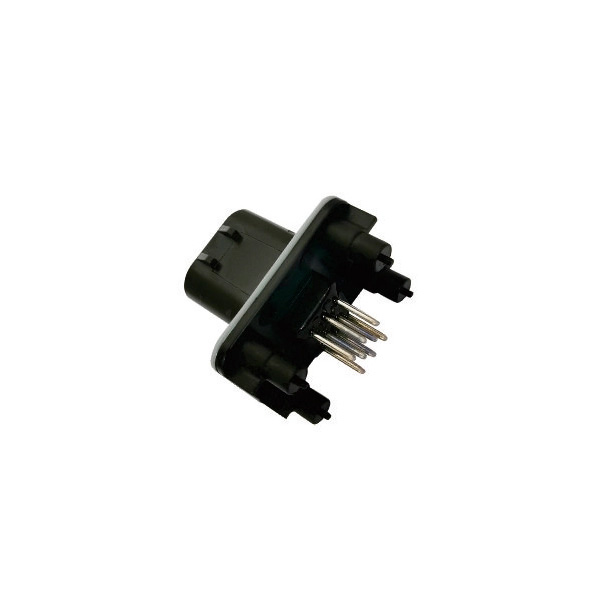

| Signal connector – waterproof, three-row straight pin socket | 8 | GVT03-RS013-8-L02 | Unilateral waterproof with nut |
| 8 | GVT03-RS013-8-L03 | With nut unilateral non-waterproof | |
| 8 | GVT03-RS013-8-L04 | Unilateralwaterproof without nut | |
| 8 | GVT03-RS013-8 | Non-nut unilateralnon-waterproof | |

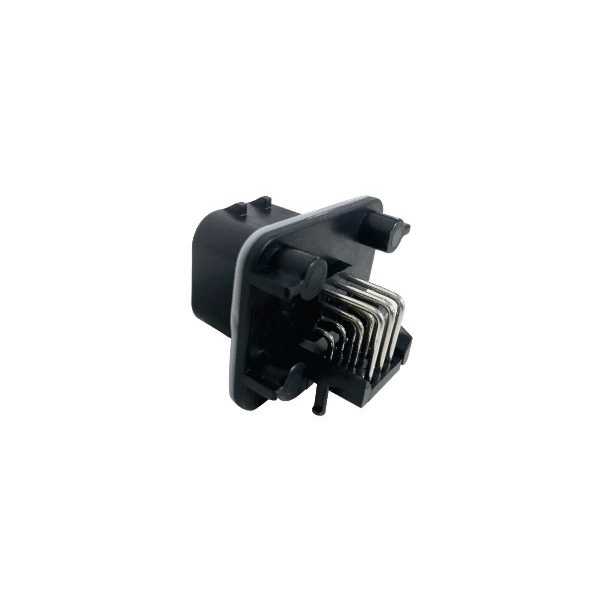

| Signal connector – waterproof, three-row bent pin socket | 8 | GVT03-RA013-8-L02 | Unilateral waterproof with nut |
| 8 | GVT03-RA013-8-L03 | With nut unilateral non-waterproof | |
| 8 | GVT03-RA013-8-L04 | Unilateral waterproof without nut | |
| 8 | GVT03-RA013-8 | Non-nut unilateral non-waterproof | |

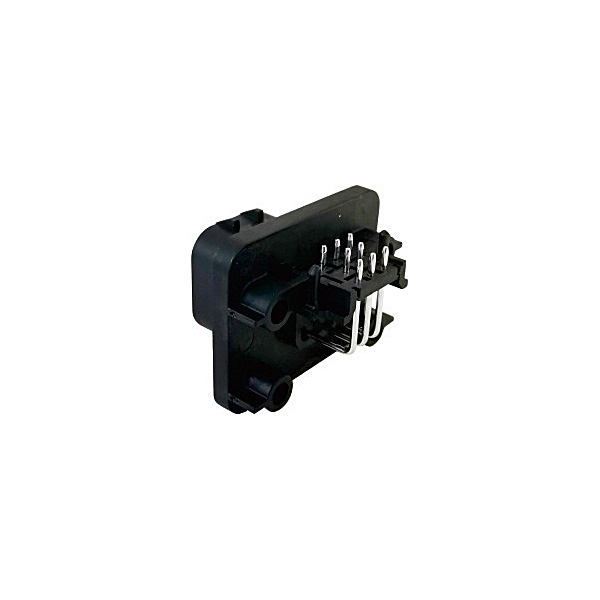

| Signal connector – waterproof, three-row reverse bent pin socket | 8 | GVT03-RA013-8-L01 | With nut unilateral non-waterproof |
