Product Parameters
Rated Voltage:800V/DC
Rated current:20~45A
Plug in/out(Times):>50
emperature Range:-40’C~125°0m
Cable Range:2.5mm2,4mm2,6mm2
HVIL:Yes
Protection Level:IP67 &IP6K9K
Flame Class:UL94 V-0
Material:PA66+Metal Alloy
Positions: 3 Pin
Electrical Protection:IP2XB
EMC:360°EMC shield
Product Application
PDU, Vehicle charger, Motor controller, Motor, Multi-in-one electric control system,etc
| Name | P/N | Remarks |

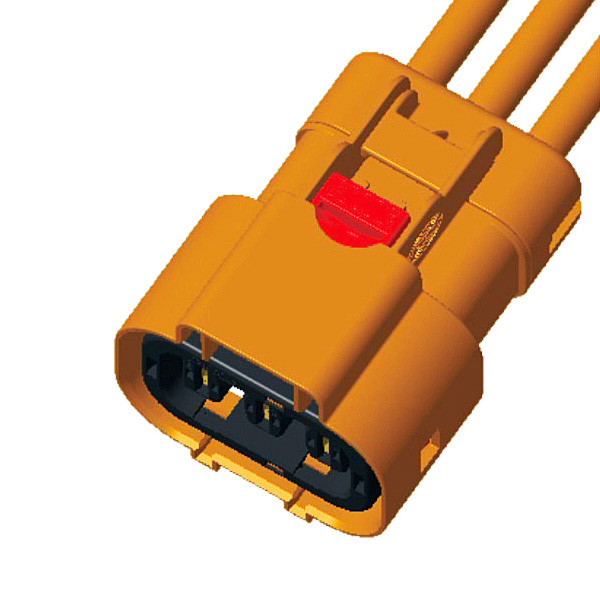

| GH630 Series 3P Connector Plug | GH63-P0XX-3XY0-Y01 | Rated Current 45A@85°C,6mm2 32A@85°C,4mm2 20A@85°C,2.5mm2 |
