Product Parameters
Rated Voltage:600V/DC
Rated current:200~250A
Temperature Range:-40~125°0
Cable Range:50mm2/70mm2
ProtectionLevel: IP67 &IPK9K
Bolt:(M8 or M6)/(M6 or M5)
Flame Class: UL94 V-0
Material:PA66+Copper Alloy
Positions: 1 Pin

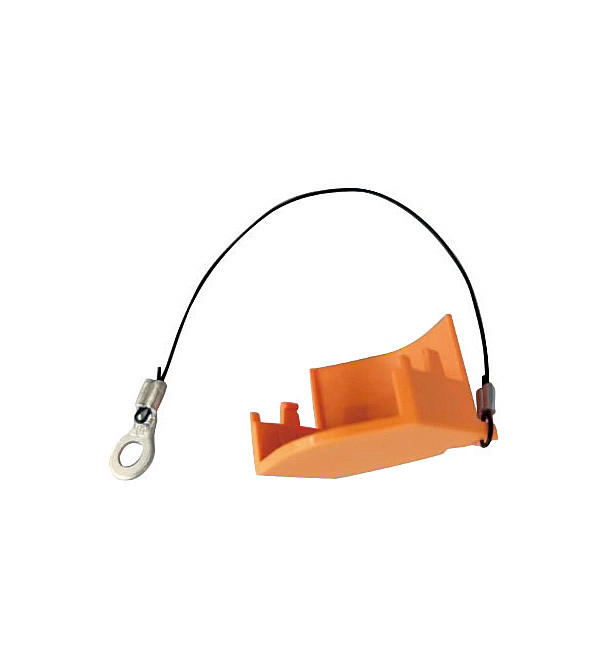

Electrical Protection:IP2XB(Supporting cover)
Product Application
PDU, Vehicle charger, Motor controller, Motor, multi-in-one electric control system etc
| Name | P/N | Remarks |

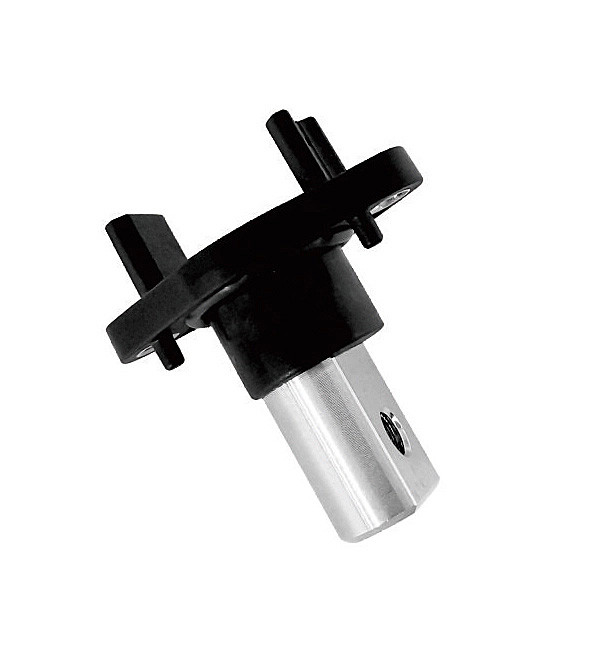

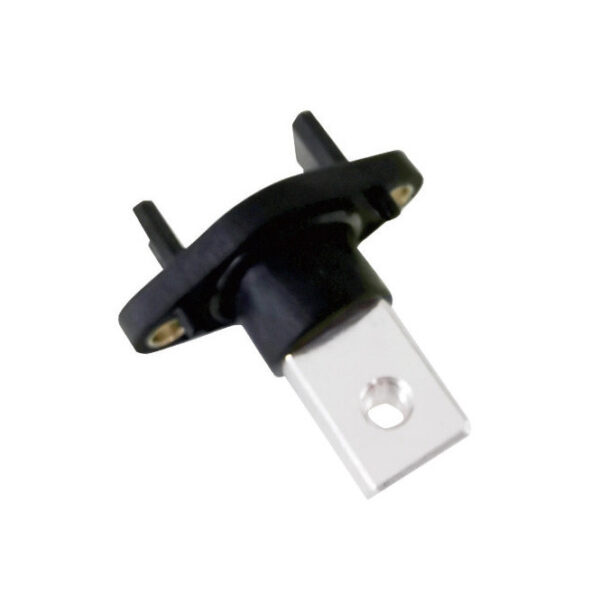

| DCDC through-the-wall terminal (single plane) | GH01-F200-1NNB-TXX | |
| DCDC through-the-wall terminal (90° single plane) | GH01-F200-1NNB-TXX | |
| DCDC through-the-wall terminal (double plane) | GH01-F250-1NNB-TXX | |
| DCDC through-the-wall terminal (90° double plane) | GH01-F250-1NNB-TXX |
