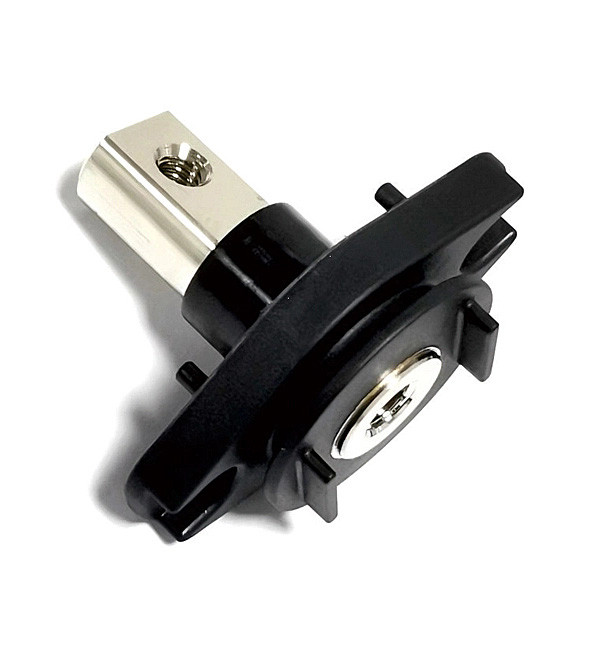

DCDC terminals are designed for applications such as high-voltage power distribution boxes, on-board chargers, motor controllers, motors, and all-in-one electronic control systems.It uses advanced power management technology to ensure stable transmission of current and meet diverse power needs.DCDC terminals can provide reliable power support for your work and business.Compared with other power products on the market, DCDC terminals have unique advantages.Its high reliability design ensures stable operation under various environmental conditions.
Product Parameters
Rated Voltage:1000V/AC
Rated Current:250A Max
Temperature Range:-40~125°C
Cable Range:50mm2/70mm2
Terminal retention:50kg Min
Protection Level: IP67 &IP6K9K
Bolt:M8/M6
Flame Class: UL94 V-0
Material: PA66+Copper Alloy
Positions: 1 Pin
ProductApplication
PDU, Vehicle charaer, Motor controller, Motor, multi-in-one electric control system etc
| Name | P/N | Remarks |
| DCDC wall terminal | GH12-F250-1NNB-T01 |
