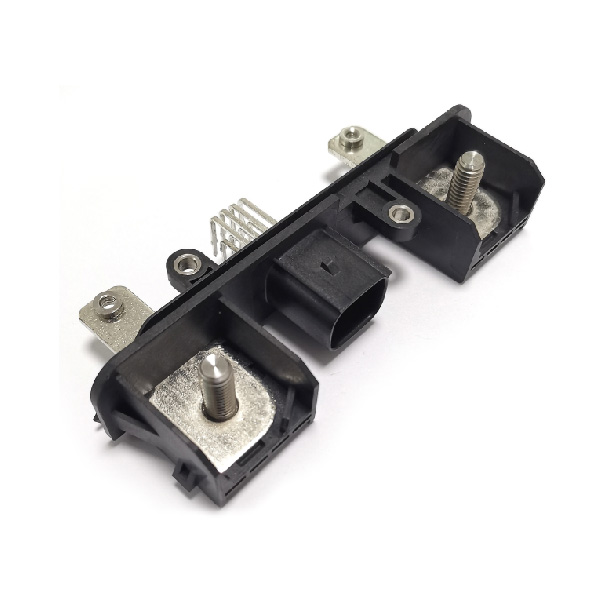

GD Series – Combined Power Connector – (2+8) Cores

Categories: , , , ,

Product Parameter
*Rated Voltage： 500VDC/AC
*Rated Current： 12A/150A(Max)
*Plug in/out（Times）： 10
*Temperature Range： -40℃ 〜105℃
*Protection Level: IP67
*Flame Class: UL94 V-0
*Material: PA66+Metal Alloy

Product Application
DC/DC, Car Radiator
