Product Parameters
Rated Voltage: 1000V AC/1000V DC
Rated Current:40A
IP Rating:lP 68
Flame Class:Meets UL94 V-0
Temperature Range:-40~125°C
Insulation resistance:5000MΩ Min,DC1000V
Withstand voltage: 3500V AC (500V AC for high voltage interlock)
Product Application
PDU, Vehicle charger, Motor controller, Motor, Multi-in-one electric control system, etc
| Name | P/N | Remarks |

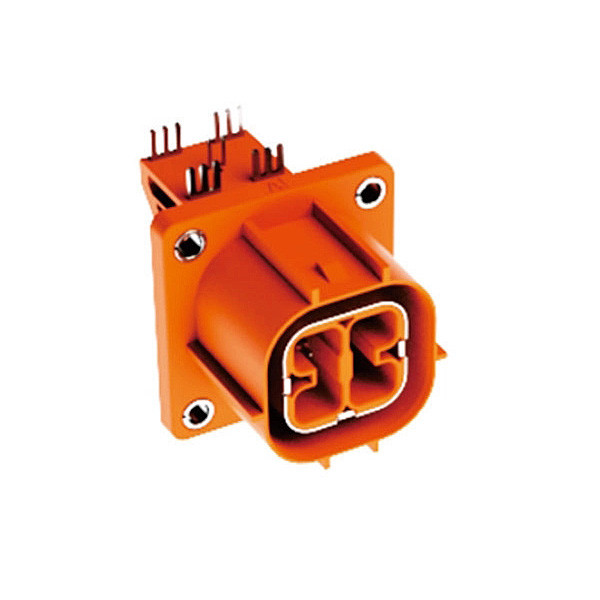

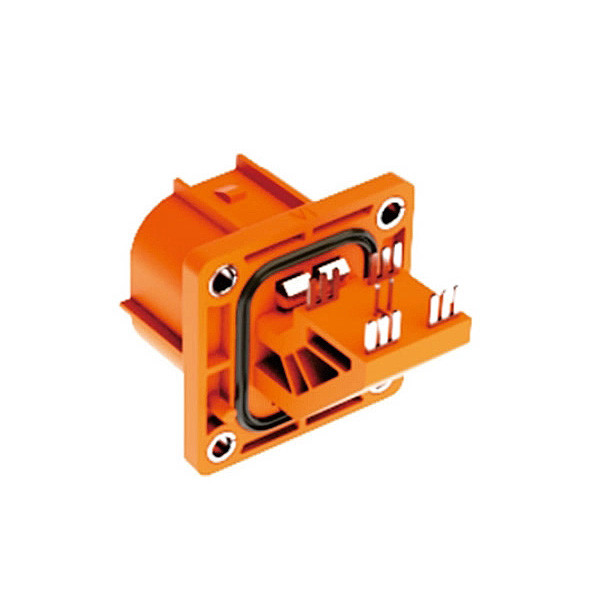

| High voltage connector (4-core) – curved socket | GH15-S040-4A(B)YO-B01 | |
| High voltage connector (4-core) – straight plug | GH15-P040-4A(B)YO-Y01 | |
| High voltage connector (2-core) – curved socket | GH15-S040-2A(B)YO-B01 | |
| High voltage connector (2-core) – straight plug | GH15-P040-2A(B)YO-Y01 |
