Product Parameters
Rated Voltage:1000V/DC
Rated Current:150~220A
Plug in/out(Times):>50
Temperature Range:-40’C~140°0
Cable Range:25mm2,35mm2,50mm2
HVIL:Yes
Protection Leve:IP67&IP6K9K
Flame Class: UL94 V-0
Material:PA66+Metal Alloy
Positions: 2 Pin
Electrical Protection:IP2XB
EMC:360°EMC shield
Product Application
PDU, Vehicle charaer, Motor controller, Motor, Multi-in-one electric control system. etc
| Name | P/N | Remarks |

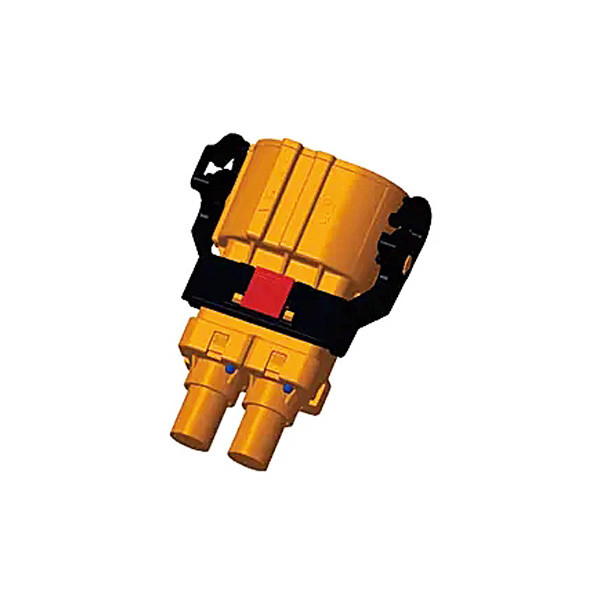

| High voltage connector-2-pin plastic shell plug | GH01-P025-2XY0-Y01 | Rated Current 45A@85°C,6mm2 32A@85°C,4mm2 20A@85°C,2.5mm2 |
