Product Parameters
Rated Voltage:1000V/DC
Rated Current:150~220A
Plugin/out(Times)>50
Temperature Range:-40’C~140°C
Cable Range:25mm2, 35mm2, 50mm2
HVIL:Yes
Protection Leve:lP67 &IP6K9K
Flame Class: UL94 V-0
Material:PA66+Metal Alloy
Positions: 3 Pin
Electrical Protection:IP2XB
EMC:360°EMC shield
Product Application
PDU, Vehicle charaer, Motor controler, Motor, Multi-in-one electric controlsystem.etc
| Name | P/N | Remarks |

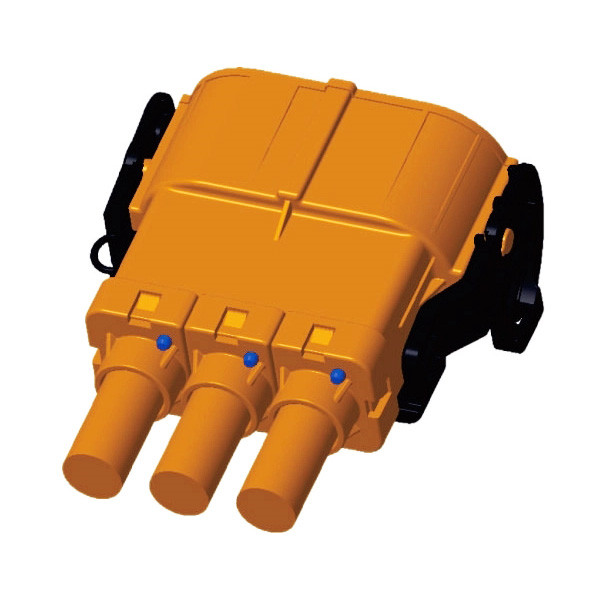

| High voltage connector-3-pin plastic shell plug | GH01-P025-3XY0-Y01 | Rated Current 220A@85°C, 50mm2 180A@85°C, 35mm2 150A@85°C, 25mm2 |
