Product Parameters
Rated voltage:250V
Rated current:3A
Insulation resistance:1000MΩ
Temperature Range:-40°C~105°C
Pitch:1.0mm、1.27mm、2.0mm、2.54mm
Materia: Copper Alloy + PA9T,G.F,UL94V-0
Flame Class: PA9T UL94 V-0
Positions: 2-40 Pin
Product Application
On-board charer, industrial controler, motor controller, motor, all-in-one electronic control system system, etc
| Name | Pin | P/N | Remarks |

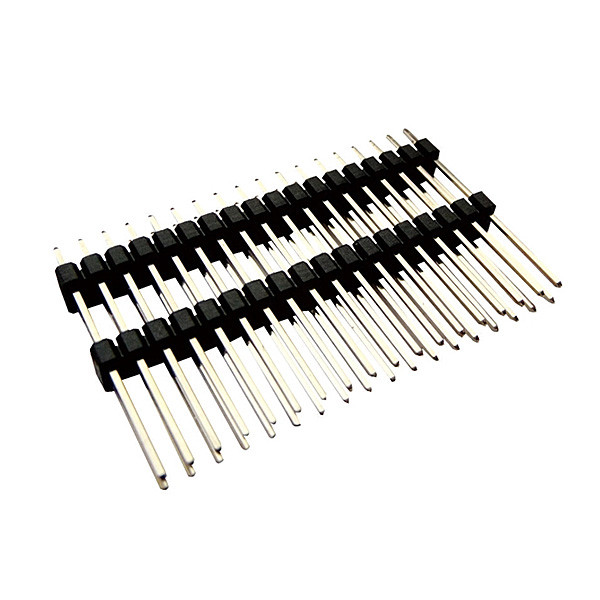

| Wire connector socket straight pin (2.54PH) | 2 | GE01-F003-2NNB-B01 | Pin and female compact connector |
| Wire connector socket straight pin (2.54PH) | 4 | GE01-F003-4NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 6 | GE01-F003-6NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 8 | GE01-F003-8NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 10 | GE01-F003-10NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 12 | GE01-F003-12NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 14 | GE01-F003-14NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | 16 | GE01-F003-16NNB-B01 | |
| Wire connector socket straight pin (2.54PH) | … | … | |
| Wire connector socket straight pin (2.54PH) | 40 | GE01-F003-40NNB-B01 |
