Product Parameters
Rated Voltage:350V/DC
Rated Current:
SignalTerminal 5A
PowerTerminal 23A
Plug in/out(Times):500
Temperature Range:-40~125°C
Cable Range:
SignalTerminal:0.34~0.5mm2
PowerTerminal:2.5~6.0mm2
Protection Leve:IP67 &IPX9
Flame Class: UL94 V-0
Materia: PA66+Metal Alloy
Positions: 2 Pin
OD of cable
Signal Terminal:Ф1.4~2.5mm
PowerTerminal:Ф2.6~4.0mm
Product Application
PDU,PEU,Charging Machine,DC/DC, Power Battery pack etc
| Name | P/N | Remarks |

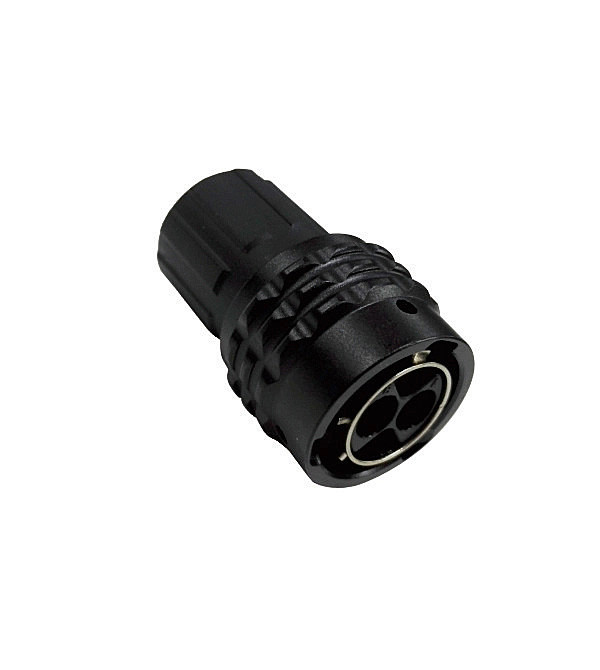

| 12#2-core signal connector plug | GR61202PNHEC | Unilateral waterproof |

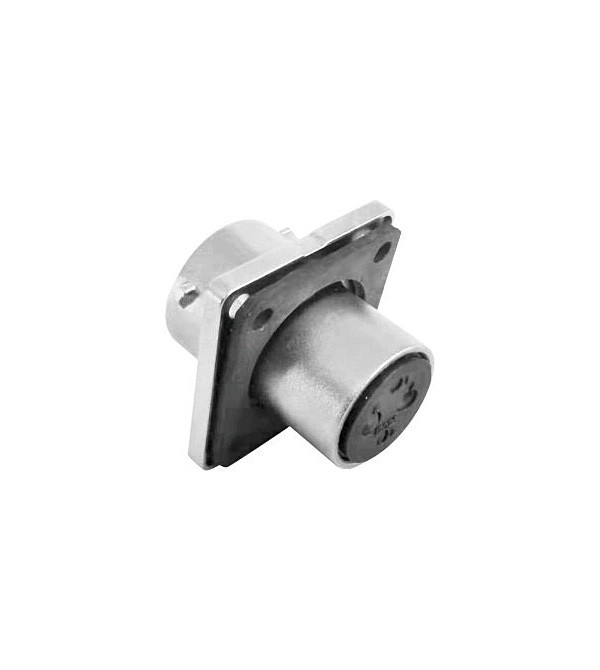

| 12#2-core signal connector square plate socket | GR01202SN | |

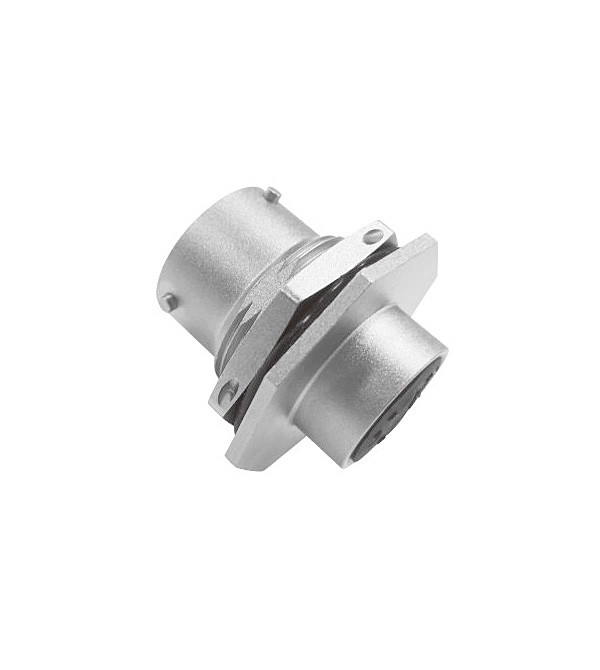

| 12#2-core signal connector octagonal plate socket | GR71202SN |
